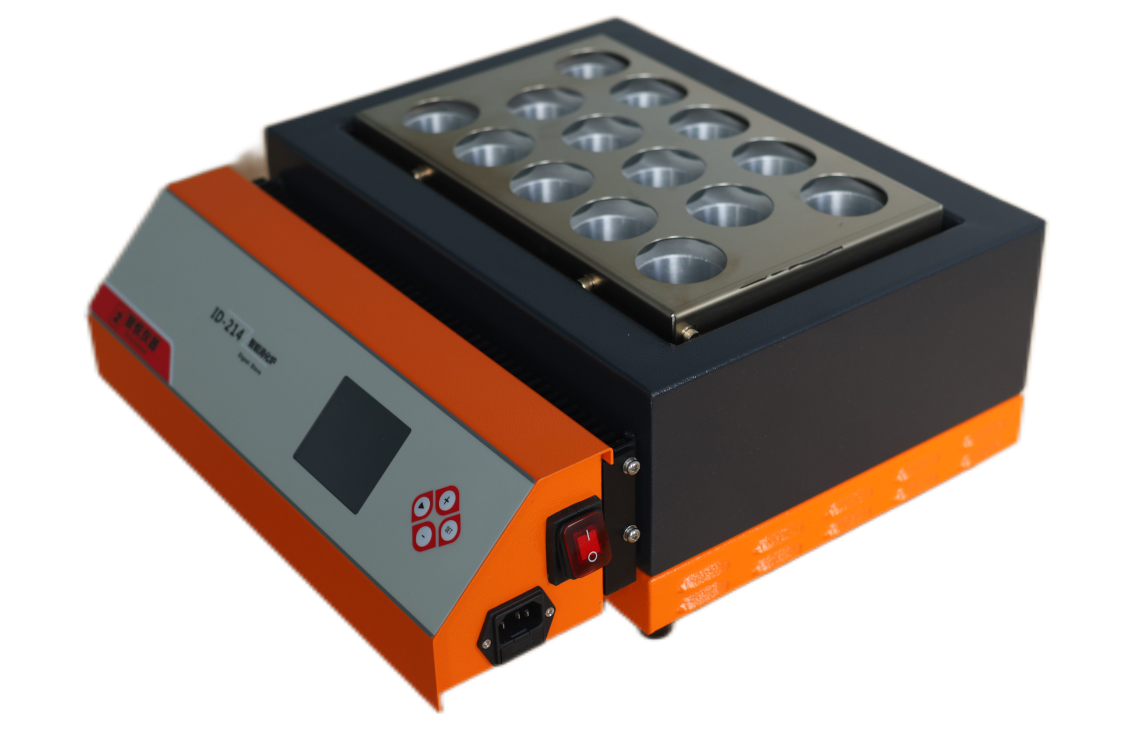

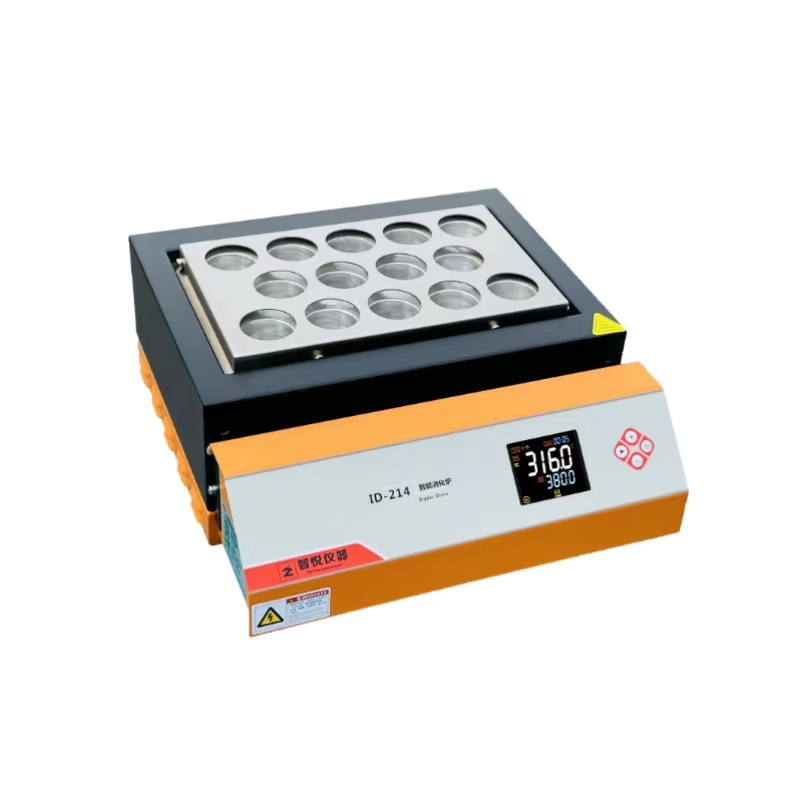

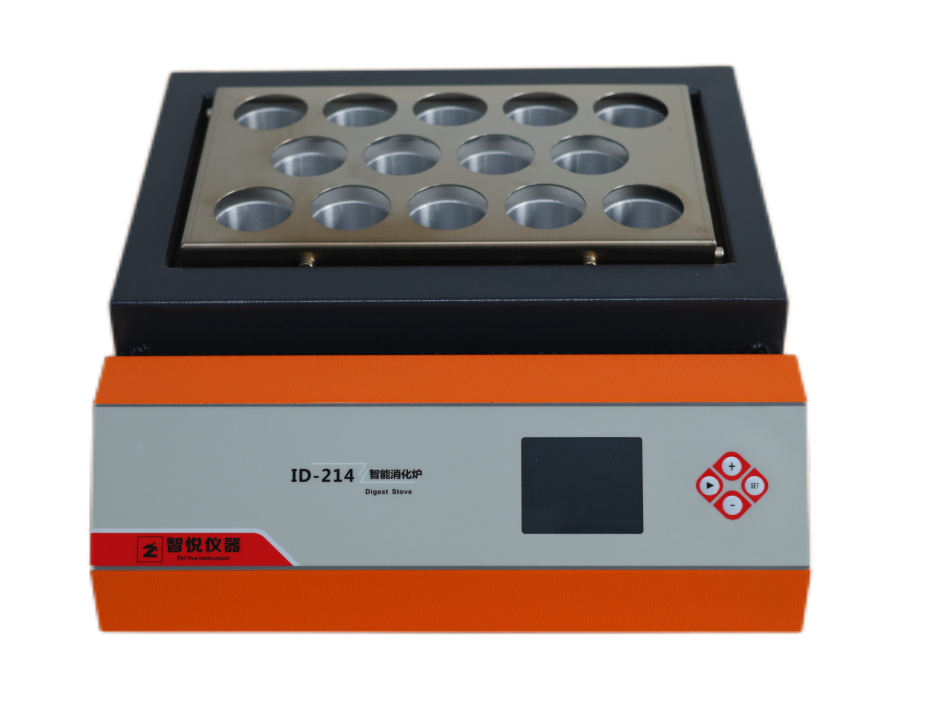

ID-214 Intelligent digestion furnace

ID214 intelligent digestion furnace is a sample digestion equipment developed based on the principle of classical wet digestion. Has the advantages of rapid digestion, safety, stability and the like. It is widely used for digestion treatment of feed, food, grain, soil, meat and dairy products before chemical analysis. It is an ideal partner for distillation equipment such as Kjeldahl azotometer.

Views

Interview

Select the number of specifications

Please check the product information you want!

Product Detail

Product features:

l The heating body is made of aluminum ingot and electric heating tube by direct casting, which is firm and durable.

l The temperature in the furnace is continuously adjustable, the temperature control precision is high, and the sample digestion stability is good

l It adopts 2.5-inch color screen display and imported chip integrated circuit control system to ensure the high quality and high standard of the instrument

l With two heating modes of curve and straight line, 6-stage automatic heating, simple setting, no need for manual operation in the heating process, and countdown, automatically stop heating and alarm when the time comes.

l Overheat protection, automatically cut off the power supply and give an alarm when the temperature exceeds the set upper limit

l Heat insulation design is adopted for the heating body and the program control board. The anodized black radiator improves the heat dissipation efficiency by about 15%, which can minimize the heat transfer with the surrounding environment and play a good role in protecting the program control center, so as to achieve a rapid, uniform and stable digestion effect

l The digestive bracket is made of stainless steel, and the surface of the body is sprayed to make the instrument more beautiful and durable.

l The sealing gasket at the mouth of the digestive tube is made of corrosion-resistant material, which has good sealing effect, no deformation and anti-aging. Buckle design, easy to clean and replace

Technical parameters:

Temperature range	Room temperature ~ 450 ℃
Temperature control accuracy	±1℃
Heating mode	Electric Heating Tube Heating and Aluminum Ingot Conduction
Temperature rise rate	Approx. 35 min (15 ℃ ~ 420 ℃ no-load)
Heat insulation method	Heat insulation of split air duct radiator
Processing capacity	14 PCs/batch
Digestive tract capacity	300ml
Ventilation requirement	Waste system (aspirator pump) and fume hood
Power source	220V±10%,50～60HZ
Rated power	2100w
Dimensions (L * W * H)	380 × 355× 145 mm
Net weight	20kg

Complete peripheral accessory device:

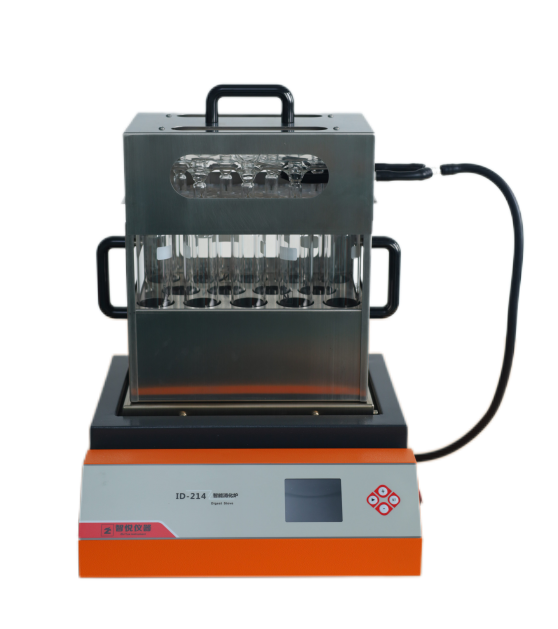

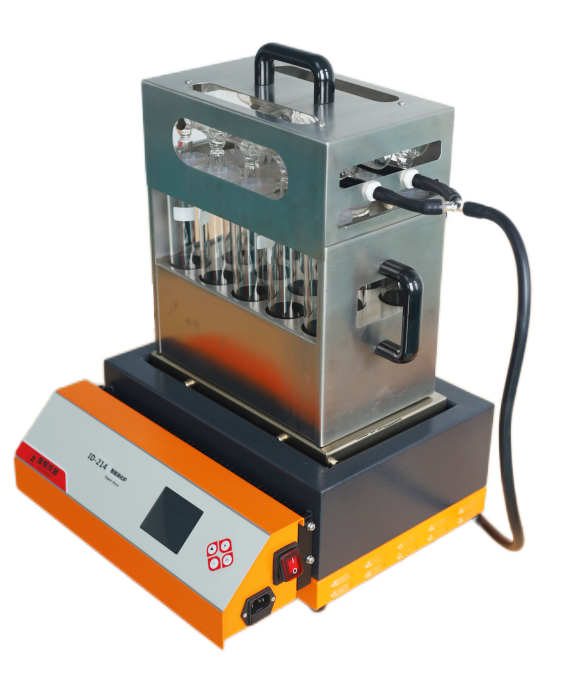

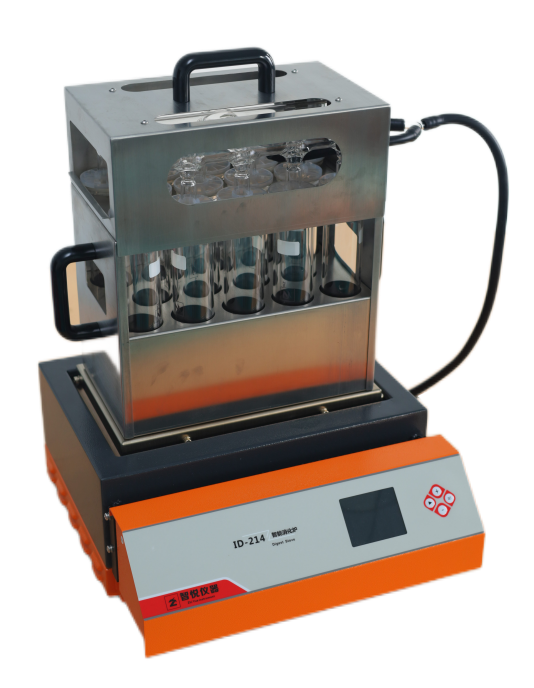

Exhaust hood:

l It is made of high-performance corrosion-resistant sealing material, with long service life and good sealing effect.

l The exhaust hood is designed with a drip tray, which can effectively reduce the corrosion of the used acid on the desktop and other objects.

l The sealing cover adopts a snap-in design, which is convenient for replacement and cleaning.

l Glass exhaust pipe and stainless steel air outlet can effectively reduce the harm of sour gas leakage to the surrounding air and personnel.

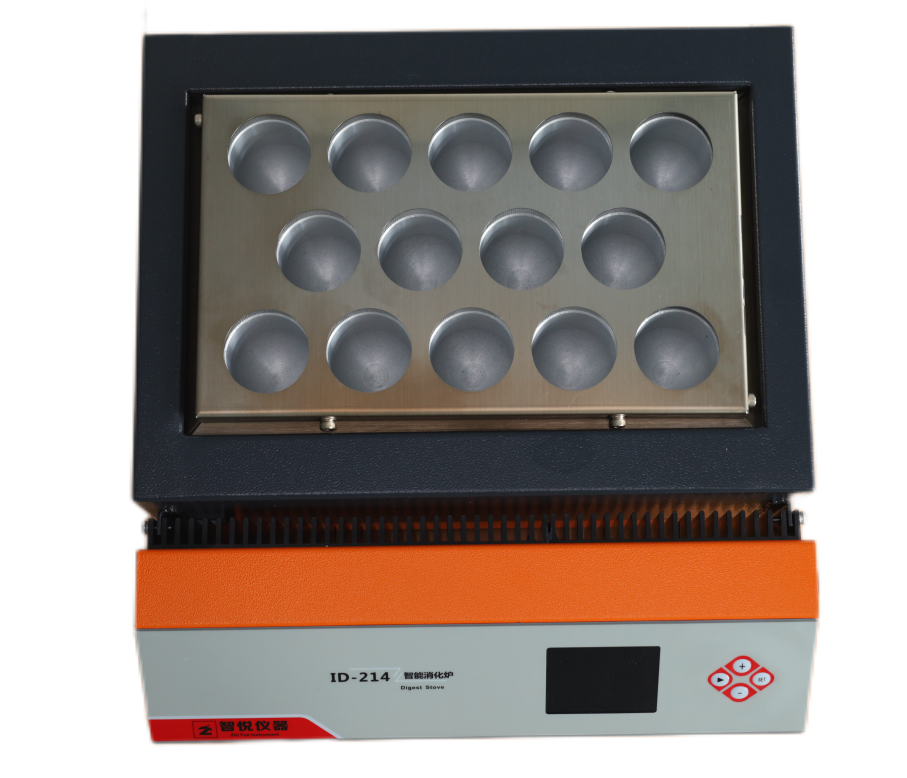

Integrated aluminum ingot heating body:

l A special integrated aluminum module is adopted for heating, so that the temperature is increased quickly, the heating is uniform, and the digestion effect is good.

l The aluminum module has high temperature resistance and is not easy to deform.

l The electric heating tube adopts the mosaic mode, which can prolong the service life of the aluminum ingot and the heating tube.

l The deep well type heating hole has smooth and beautiful hole wall, and can improve the digestion efficiency of the sample at the bottom of the digestion tube.

Intelligent LCD temperature controller system:

l The interface of the intelligent LCD temperature control system is beautiful and easy to understand.

l The imported chip integrated circuit control system improves the safety and stability.

l PID parameter self-check, automatic adjustment of heating rate, high accuracy of temperature control.

l Over-temperature alarm and timing temperature control integration are adopted, and personnel are not required to be on duty.

l One-button start design to eliminate personnel operation errors.
